M187A1 Telescope Mount: Details
NSN: 1240-01-483-5324
P/N: 12984689
General Description

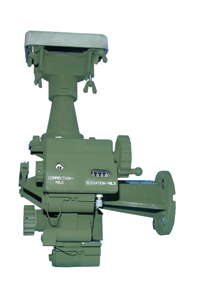

The M187A1 Telescope Mount holds and supports the M137A2 Panoramic Telescope to the howitzer. The mount provides adjustments in elevation and cant (cross level) for indirect fire for the howitzer. It consists of two sub-assemblies, one mounted on top of the other and secured by four screws. It provides elevation readout by means of the digital counter and flats for using the M1A1 Gunner’s Quadrant.
The M187A1 Telescope Mount is used on the M119 Howitzer.
Additional Information
| Weight: | 38 lbs |
| Height: | 13 in. |
| Width: | 9 ¾ in. |
| Length: | 14 1/8 in. |
Related Equipment
|
P/N |
NSN |
|
| M137A2 Panoramic Telescope |
12984713 |
1240-01-038-0531 |
| M90A3 Straight Telescope |
12984673 |
1240-01-480-0292 |
| M186 Telescope Mount |
12599175 |
1240-01-277-0473 |
| M140A1 Alignment Device |
11741648-4 |
4931-01-472-6622 |
| M1A1 Gunner’s Quadrant |
7197156 |
1290-00-169-1937 |
