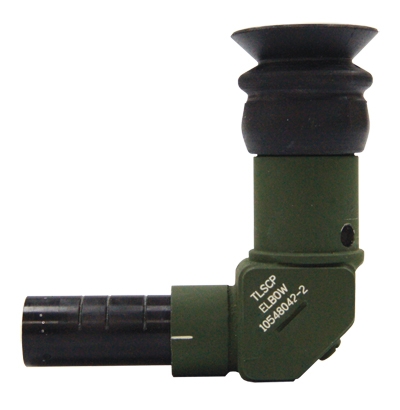

M109 Elbow Telescope: Details
NSN: 1240-01-197-5069
P/N: 10548042-2
General Description
The M109 Elbow Telescope is a lightweight, 4-power, fixed-focus telescope with a 10-degree field of view that provides the optical line of sight for aiming the weapon in azimuth and elevation planes.
The M109 Elbow Telescope is used on the M45 Optical Boresight which is used to boresight the 120mm and 81mm mortars.
Related Equipment
P/N |
NSN |
|
M64 Telescope Mount |
9360168 |
1240-01-379-7953 |
M67 Sight Unit |
9356182 |
1240-01-366-7322 |
M67A1 Sight Unit |
SLB10281 |
1015-01-556-1178 |
M45 Optical Boresight |
10549221 |
1240-00-152-3512 |
